Command & Control - Level 5
"Command & Control - level 5"
Command & Control - level 5¤
Đề bài¤

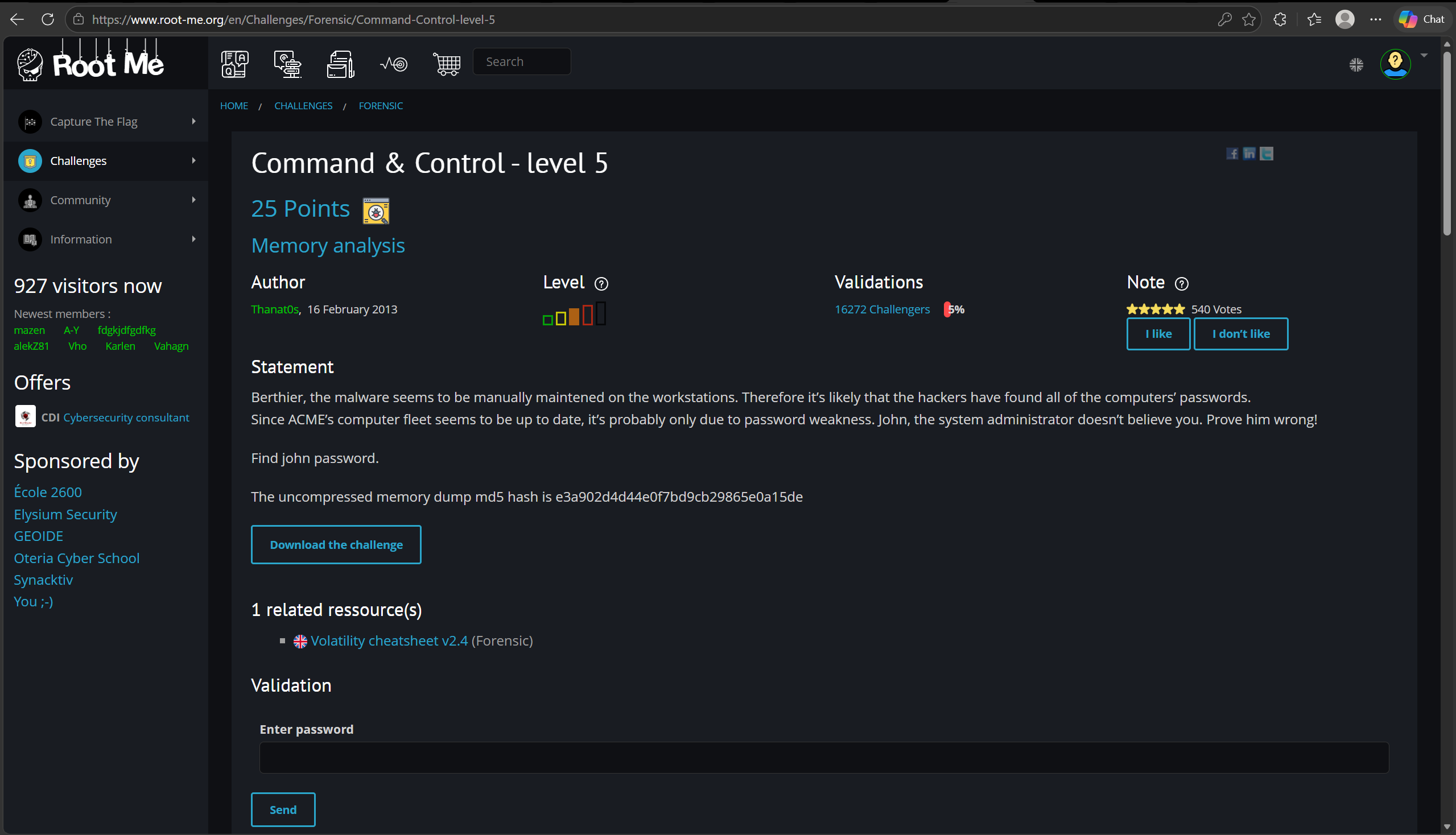

Statement
Berthier, the malware seems to be manually maintened on the workstations. Therefore it’s likely that the hackers have found all of the computers’ passwords. Since ACME’s computer fleet seems to be up to date, it’s probably only due to password weakness. John, the system administrator doesn’t believe you. Prove him wrong!
Find john password.

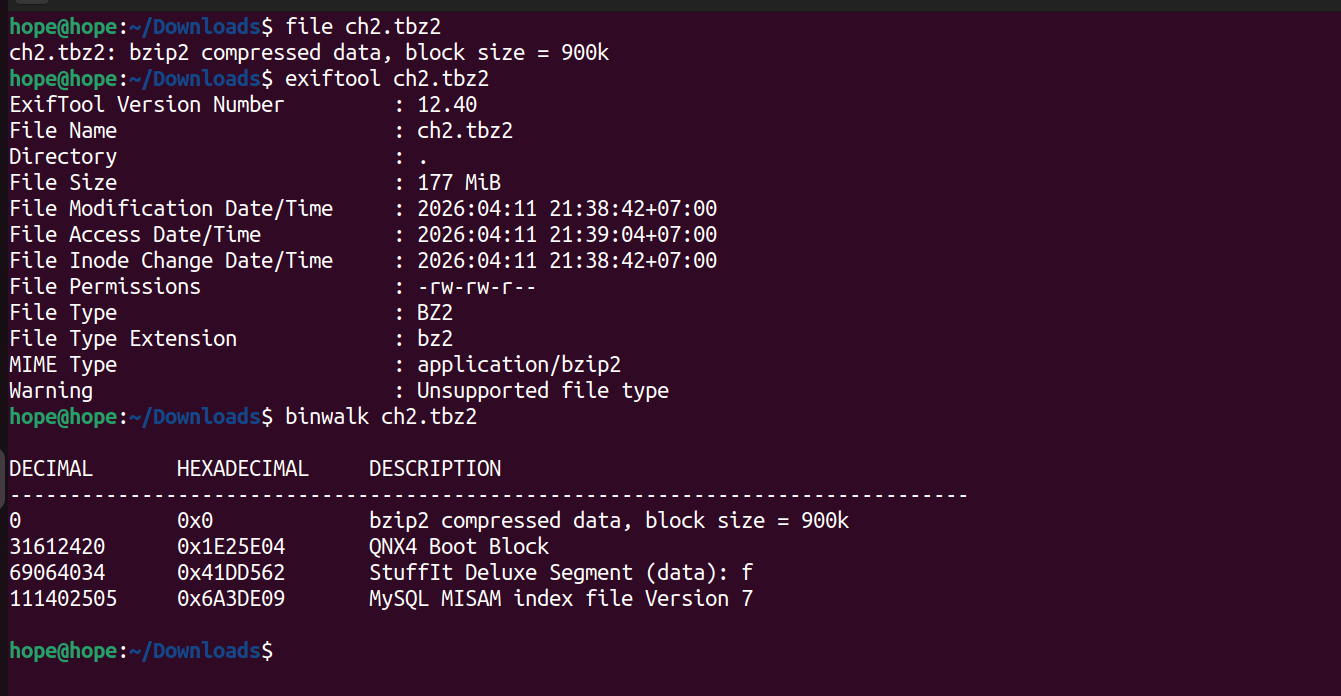

Bước 1: Xác định định dạng thông tin file¤
Bash
hope@hope:~/Downloads$ file ch2.tbz2
ch2.tbz2: bzip2 compressed data, block size = 900k
hope@hope:~/Downloads$ exiftool ch2.tbz2
ExifTool Version Number : 12.40
File Name : ch2.tbz2
Directory : .
File Size : 177 MiB
File Modification Date/Time : 2026:04:11 21:38:42+07:00
File Access Date/Time : 2026:04:11 21:39:04+07:00
File Inode Change Date/Time : 2026:04:11 21:38:42+07:00
File Permissions : -rw-rw-r--
File Type : BZ2
File Type Extension : bz2
MIME Type : application/bzip2
Warning : Unsupported file type
hope@hope:~/Downloads$ binwalk ch2.tbz2
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
0 0x0 bzip2 compressed data, block size = 900k
31612420 0x1E25E04 QNX4 Boot Block
69064034 0x41DD562 StuffIt Deluxe Segment (data): f
111402505 0x6A3DE09 MySQL MISAM index file Version 7
Ta thấy rằng file được nén bằng thuật toán bzip2 và binwalk cũng phát hiện được MySQL MISAM version 7, tức là có thể lưu mật khẩu trong database.
Nhưng Artifact MySQL MISAM được phát hiện nhưng không cần thiết cho việc khai thác, do password đã có thể trích xuất trực tiếp từ memory dump.

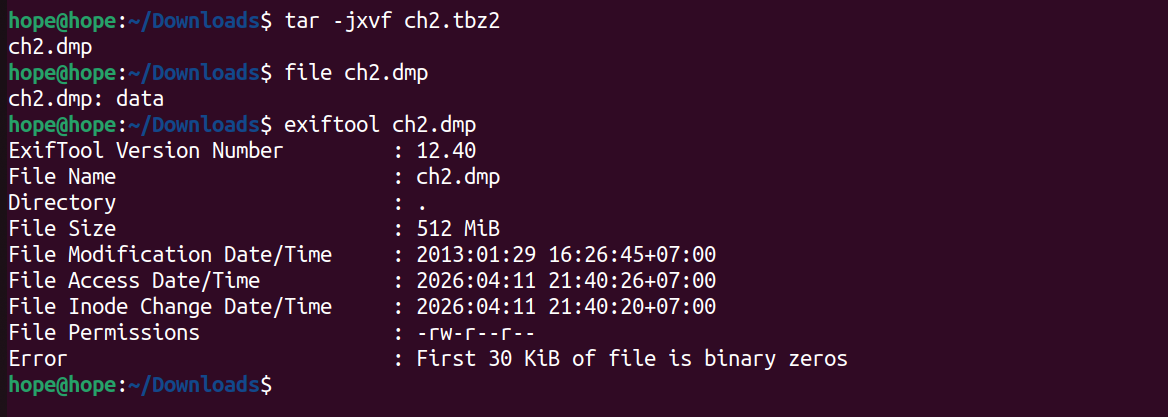

Bước 2: Giải nén ra và xem định dạng file đã giải nén¤
Bash
hope@hope:~/Downloads$ file ch2.dmp
ch2.dmp: data
hope@hope:~/Downloads$ exiftool ch2.dmp
ExifTool Version Number : 12.40
File Name : ch2.dmp
Directory : .
File Size : 512 MiB
File Modification Date/Time : 2013:01:29 16:26:45+07:00
File Access Date/Time : 2026:04:11 21:40:26+07:00
File Inode Change Date/Time : 2026:04:11 21:40:20+07:00
File Permissions : -rw-r--r--
Error : First 30 KiB of file is binary zeros
hope@hope:~/Downloads$ binwalk ch2.dmp
DECIMAL HEXADECIMAL DESCRIPTION
--------------------------------------------------------------------------------
154592 0x25BE0 Microsoft executable, portable (PE)
158980 0x26D04 Certificate in DER format (x509 v3), header length: 4, sequence length: 1697
162035 0x278F3 Certificate in DER format (x509 v3), header length: 4, sequence length: 1697
512203 0x7D0CB Certificate in DER format (x509 v3), header length: 4, sequence length: 1697
1169571 0x11D8A3 Cisco IOS microcode, for "S"
1276741 0x137B45 Minix filesystem, V1, little endian, 97 zones
1671168 0x198000 Microsoft executable, portable (PE)
1802240 0x1B8000 Microsoft executable, portable (PE)
2205955 0x21A903 Certificate in DER format (x509 v3), header length: 4, sequence length: 2732
2347336 0x23D148 Base64 standard index table
2359627 0x24014B LZMA compressed data, properties: 0x8B, dictionary size: 0 bytes, uncompressed size: 72 bytes
2396154 0x248FFA LZMA compressed data, properties: 0xA3, dictionary size: 0 bytes, uncompressed size: 137 bytes
2507180 0x2641AC Intel x86 or x64 microcode, sig 0x00000001, pf_mask 0x00, 1CE0-09-12, rev 0x-001, size 2048
2887664 0x2C0FF0 LZMA compressed data, properties: 0x66, dictionary size: 0 bytes, uncompressed size: 26368 bytes
3248128 0x319000 Microsoft executable, portable (PE)
3383269 0x339FE5 Copyright string: "Copyright (c) 1997 Microsof1]:0),i&&t&&(n.extend(u.attr,{width:i,height:t}),n.extend(u.initParams,{v:h,mkt:it}),v=[],n.each(u.in"
3784704 0x39C000 Microsoft executable, portable (PE)
4251820 0x40E0AC Certificate in DER format (x509 v3), header length: 4, sequence length: 2244
4251989 0x40E155 Digi International firmware, load address: 0x204D6963, entry point: 0x66742053,
4253150 0x40E5DE Copyright string: "Copyright (c)1996 VeriSign, Inc. All Rights Reserved. CERTAIN"
4634111 0x46B5FF Copyright string: "Copyright (C) 2000 Microsoft Corporation"
4992047 0x4C2C2F Intel x86 or x64 microcode, sig 0x46665006, pf_mask 0xba372a99, 1A00-03-02, rev 0x7d00, size 33686272
5054864 0x4D2190 HTML document header
5054904 0x4D21B8 XML document, version: "1.0"
5279744 0x509000 Microsoft executable, portable (PE)
5439497 0x530009 Certificate in DER format (x509 v3), header length: 4, sequence length: 1555
5441060 0x530624 Certificate in DER format (x509 v3), header length: 4, sequence length: 1298
...
Ở đây ta thấy được ta có quyền đọc và ghi file nên ta có thể duyệt một lượt sơ

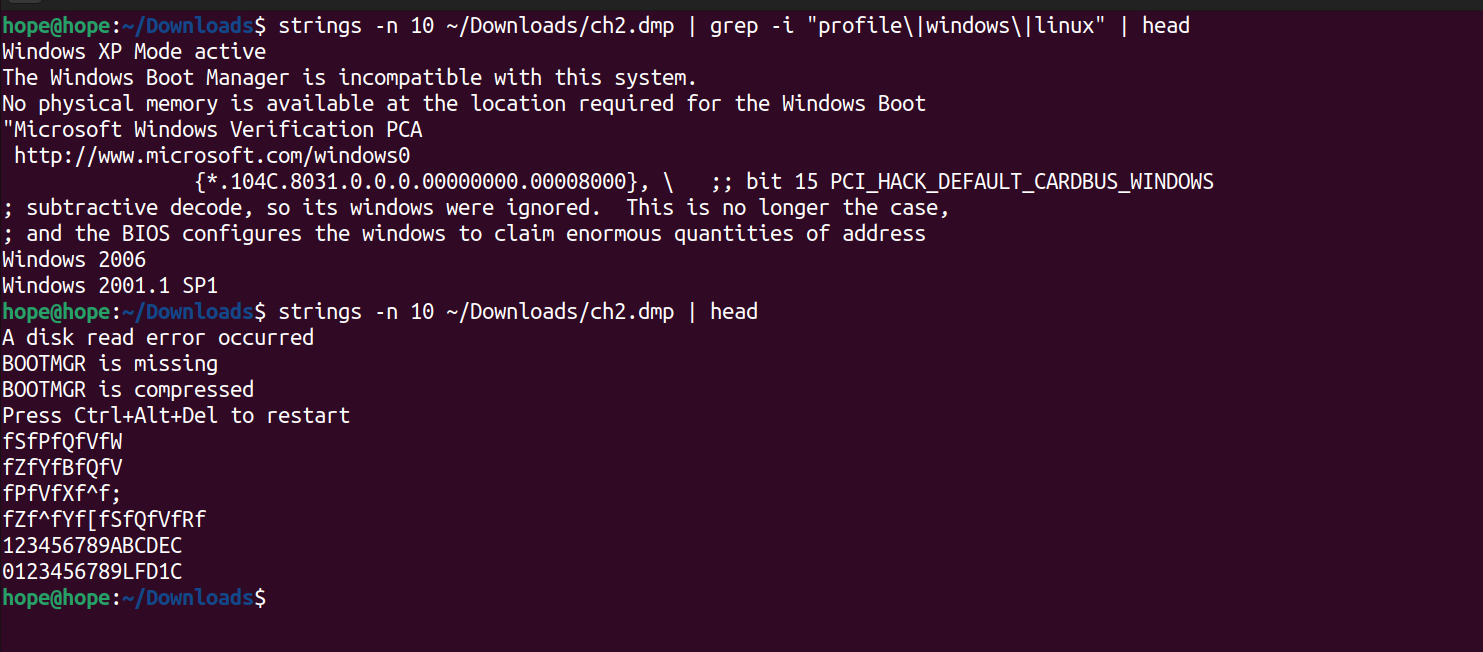

Bước 3: Dùng strings và grep để tìm kiếm nhanh profile của máy file được dump¤
Ta thấy được đây là window XP 2006, 2001.1SP1
Bash
hope@hope:~/Downloads$ strings -n 10 ~/Downloads/ch2.dmp | grep -i "profile/|windows/|linux" | head
Windows XP Mode active
The Windows Boot Manager is incompatible with this system.
No physical memory is available at the location required for the Windows Boot
"Microsoft Windows Verification PCA
http://www.microsoft.com/windows0
{*.104C.8031.0.0.0.00000000.00008000}, / ;; bit 15 PCI_HACK_DEFAULT_CARDBUS_WINDOWS
; subtractive decode, so its windows were ignored. This is no longer the case,
; and the BIOS configures the windows to claim enormous quantities of address
Windows 2006
Windows 2001.1 SP1
hope@hope:~/Downloads$ strings -n 10 ~/Downloads/ch2.dmp | head
A disk read error occurred
BOOTMGR is missing
BOOTMGR is compressed
Press Ctrl+Alt+Del to restart
fSfPfQfVfW
fZfYfBfQfV
fPfVfXf^f;
fZf^fYf[fSfQfVfRf
123456789ABCDEC
0123456789LFD1C

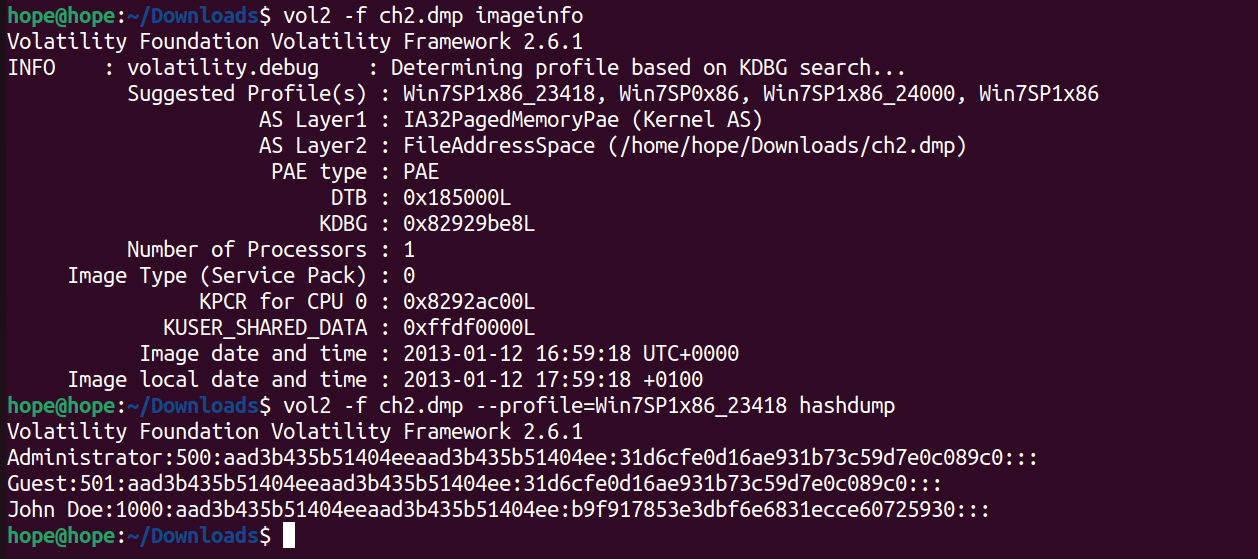

Dùng volatility2 để xác định thông tin và dùng hashdump để xem mật khẩu
Sử dụng imageinfo để xác định profile phù hợp. Chọn Win7SP1x86_23418 vì đây là profile được đề xuất và cho kết quả chính xác.
Bash
hope@hope:~/Downloads$ vol2 -f ch2.dmp imageinfo
Volatility Foundation Volatility Framework 2.6.1
INFO : volatility.debug : Determining profile based on KDBG search...
Suggested Profile(s) : Win7SP1x86_23418, Win7SP0x86, Win7SP1x86_24000, Win7SP1x86
AS Layer1 : IA32PagedMemoryPae (Kernel AS)
AS Layer2 : FileAddressSpace (/home/hope/Downloads/ch2.dmp)
PAE type : PAE
DTB : 0x185000L
KDBG : 0x82929be8L
Number of Processors : 1
Image Type (Service Pack) : 0
KPCR for CPU 0 : 0x8292ac00L
KUSER_SHARED_DATA : 0xffdf0000L
Image date and time : 2013-01-12 16:59:18 UTC+0000
Image local date and time : 2013-01-12 17:59:18 +0100
hope@hope:~/Downloads$ vol2 -f ch2.dmp --profile=Win7SP1x86_23418 hashdump
Volatility Foundation Volatility Framework 2.6.1
Administrator:500:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
Guest:501:aad3b435b51404eeaad3b435b51404ee:31d6cfe0d16ae931b73c59d7e0c089c0:::
John Doe:1000:aad3b435b51404eeaad3b435b51404ee:b9f917853e3dbf6e6831ecce60725930:::
Với MISAM ban đầu ta được thấy, có thể trích xuất nhanh được và xác định được mật khẩu được mã hóa md5, nên đoạn sau “:” của John ta có thể crack được và xem thông tin mật khẩu

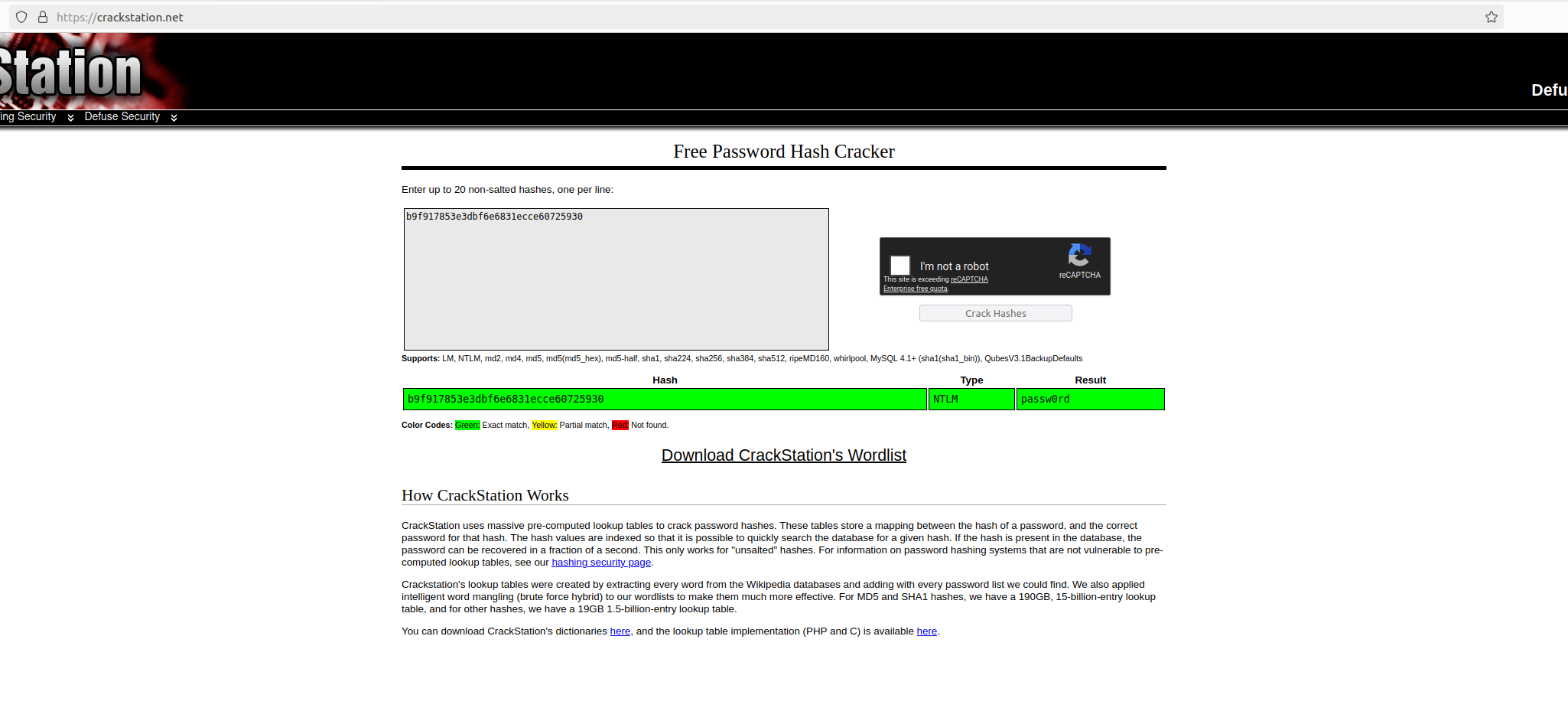

Dùng crackstation để decode
Hash thu được là NTLM hash. Có thể crack bằng wordlist hoặc tra cứu online.

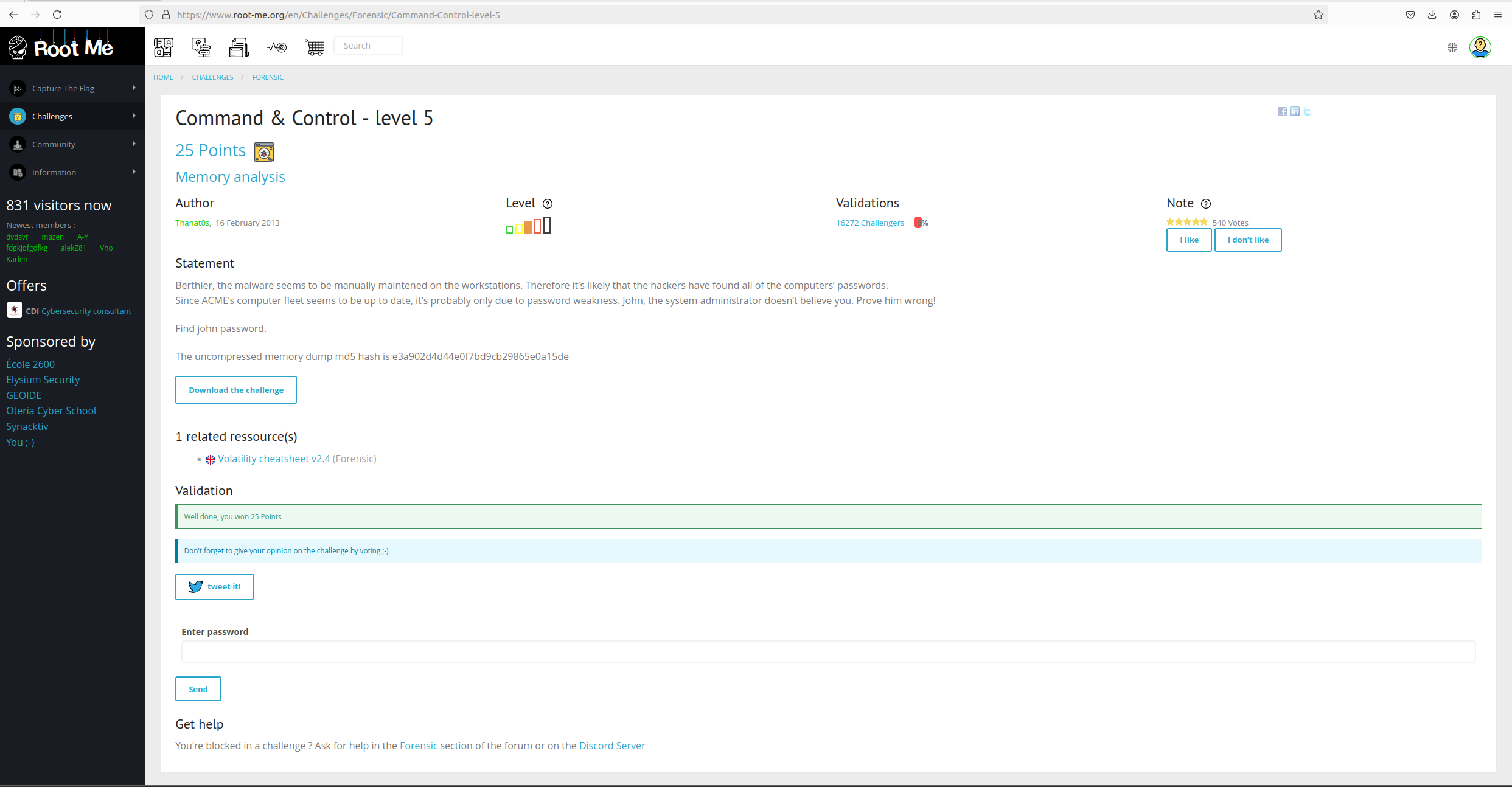

Flag¤
Ảnh quy trình tương ứng¤
